Mark I Images

Sorry about the poor image quality, these images were taken with IXUS II APS camera and I failed to lock the focus properly; to digitize these images I used the DIGITAL IXUS instead of a proper scanner.

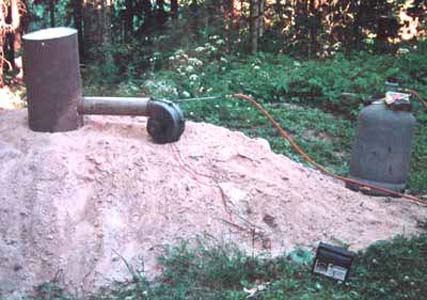

The original test setup on top of the sand pile.

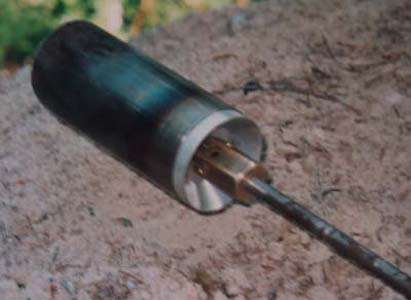

The Mark I burner, back view, notice the bronze hexagonal mixing chamber.

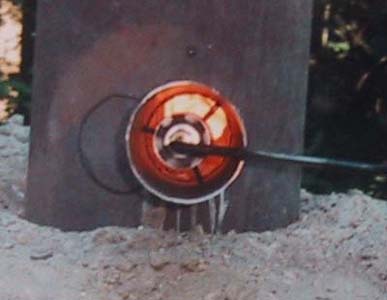

The burner installed and burning inside of the stailess steel pipe.

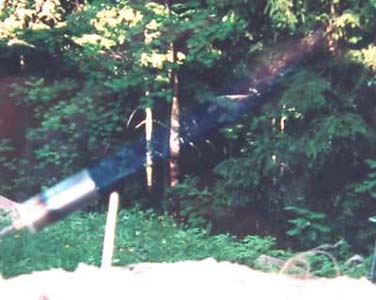

Demonstrating a 75 cm (3') flame.
Close this window when done.

The original test setup on top of the sand pile.	The Mark I burner, back view, notice the bronze hexagonal mixing chamber.
The burner installed and burning inside of the stailess steel pipe.	Demonstrating a 75 cm (3') flame.
